OU7S-AK

Iris ID has been producing commercial iris recognition systems since 1997. In thousands of locations, IrisAccess® authenticates the iris identity of more persons than all other iris platforms combined. Iris ID’s rich experience in iris recognition is exemplified in the OU7S-AK.

Previous handheld iris recognition systems required significant cooperation and for a subject to remain completely motionless in order to capture high quality iris images. Iris ID has developed a series of algorithms which provide the capability to capture iris images in any environment.

Features

High Speed Iris Capture & Matching in a compact package
On or Off Device Iris Template Matching
Up to 100K User record local 1:N matching in 1 second
National ID Quality Iris Image – Standards Compliant
Intuitive User Interface with Virtual LED Indication
5 MP face camera White LED flash
Comfortable Capture Distance 28~38 cm (11~15 Inches)
Flexible Mounting Options
Power Adapter Powered
Tilt Assist

OEM Applications

  • Kiosks
  • Smart Kiosks
  • ATM
  • VTM

OU7S-AK Unit Model Matrix

Model Number Description Color
OU7S-AKB USB, Ethernet Black C o l o r
OU7S-AKT USB, Ethernet Titanium C o l o r

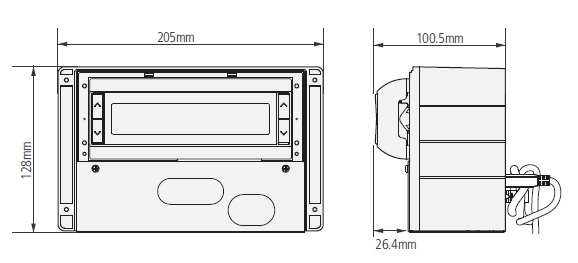

Mechanical Drawing
OU75_AKT_mechanicalDrawing

Capture Volume
OU75_AKT_captureVolume

iDATA OU7S-AK SDK
Iris ID provides an API SDK to enable all functions of the OU7S-AK. The development environment and functionality of the SDK for the OU7S-AK module closely mimics those of the widely deployed iData SDK for the IrisAccess iCAM series cameras. Application developers familiar with the other Iris ID development tools will find integration to be very simple.

SDK Versions
Three versions of the SDK are available:

  • Image Capture only
  • Image Capture & Quality Metrics
  • Image Capture, Quality Metrics and Matching

Sample Application Source Code
The sample application source code is delivered as a part of the SDK. Sample SDK code is provided in C++ and C#.

Demonstration Application
A runtime only application is available for customer evaluation which provides the functionality to perform iris image capture and iris template matching.

Tech Specs

 OU 7S-AK  (OEM Iris Camera Module)
 Dimensions (WxHxD) 205mm x 128mm x 100.5mm (8.07” x 5.04“ x 3.96” )
 Weight 800g (1.76lbs)
 Power Input/ Consumption 2~24 VDC, 2.0 Amps @ 12 VDC / 24W
 Iris Operating Range Indicator Dual Color – Orange (out of range), Green (in range)
 Voice Indication English standard, others available by download
 Iris Capture Range 28cm~38cm (11“~15”)
 Flash High output flash for face captur
 Face Image Camera Face camera CMOS – 5MP
 Transaction Log Capacity Up to 1,000,000 transactions stored on device, unlimited on server
 Operating Temperature 0°C~45°C (32°F~113°F)
 Storage Temperature -20°C~95°C (-4°F~203°F)
 Humidity Up to 90% non-condensing
 Iris & Face Camera Rotation Angle +35°/-25°
 Communications USB, Ethernet
 Equipment Supplied with OU7S-AK Instruction Manual – Quick Start Guide
 iData SDK
 Certifications  CE, FCC, KC, Eye Safety, ISO Standard, KISA
Items Required for Use of This Product

Required Equipment (not provided by Iris ID)

  • Windows based PC (Windows 10 (32/64-bit)

Minimum Computer requirements

  • Microsoft Windows 10 (32/64-bit) OS
  • 512MB RAM (or higher)
  • x86 Processor, 2.0 GHz (or higher)
  • 2GB available HDD space or above
  • Microsoft .NET Framework ver. 3.5
  • Mouse, SVGA Monitor, Keyboard
  • Dedicated USB 2.0 port (or higher)
  • 10/100 Base-T Ethernet Port
N O T E :  An available and dedicated USB 2.0 compliant port is needed to properly use the OU7S-AK
